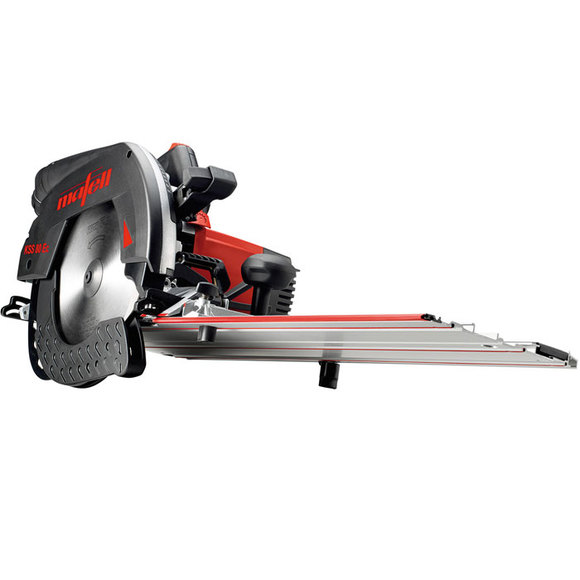

Mafell KSS80Ec / 370 Cross Cutting System 110v
Mafell KSS80Ec / 370 Cross Cutting System 110v
3-4 Day ETA

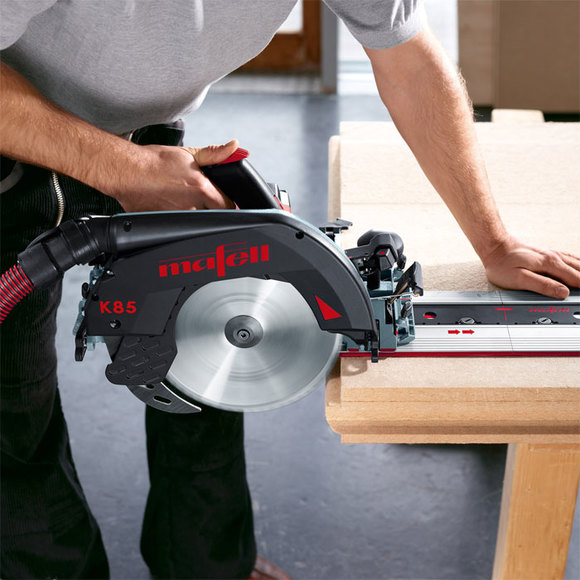

The new Mafell KSS80EC / 370 cross cutting system combines power and precision with ease of use and ergonomic design. These properties transform the machine into an unique carpentry system.
Once the cut has been executed, the saw automatically returns to the starting position. The maximum cutting length, exploiting the full cutting depth, is 370 mm.
Sheer power and high torque take on a whole new meaning with the new high-output CUprex motor. It offers performance-optimized digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
It is no longer necessary to unscrew the riving knife - the FLIPPKEIL offers you optimum user-friendliness and safety when plung cutting.

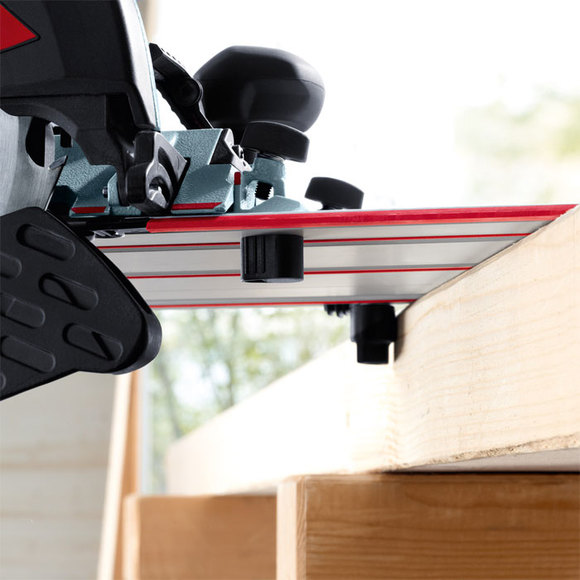

The quick release catch enables you to detach the machine from the rail in a single, quick action. The saw can then be used as a seperate portable circular saw.
Applications:
- Cross cuts with guide
- Rip cuts and cross cutting
- Plunge cuts and recesses
Specifications:
- Cutting depth at 0° with guide track – 82 mm
- Cutting depth at 45° with guide track – 55.5 mm
- Cutting depth at 60° with guide track – 38.5 mm
- Cutting depth at 0° without guide track – 88 mm
- Tilt range – 0 to 60°
- Angle cuts – 50 to -60°
- Weight – 8.8 kg
- No load speed - 4400rpm
Includes:
- KSS80Ec / 370
- TCT saw blade 237 x 1.8/2.5 x 30 mm, AT, 12 teeth for rip cuts
- Guide track 370

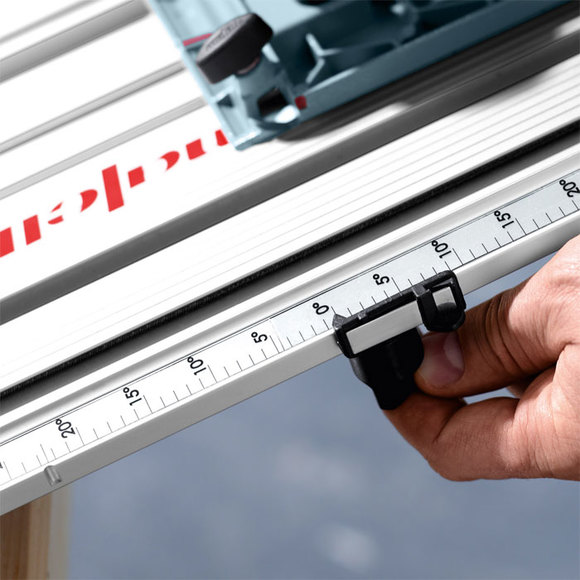

- Parallel guide fence
- Hose connector
- Allen key 5 mm
- Mains cable 4 m
- Supplied boxed
Product Code: MAF-918522
