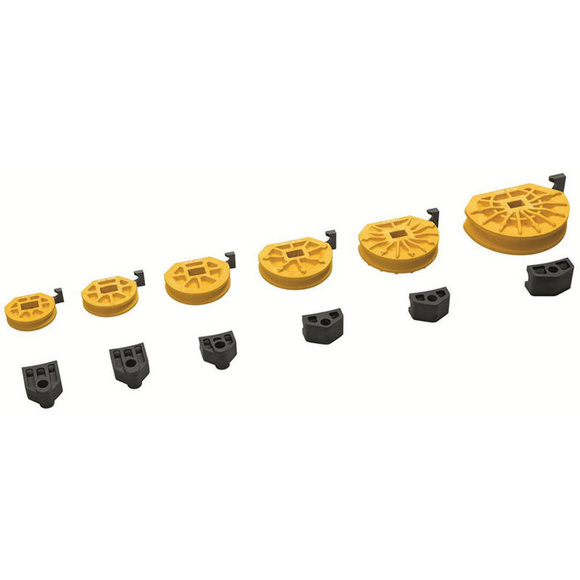

REMS Metric Bending Former & Back Former 20 mm, 16 U, 18 U
£189.00
£226.80 inc. VAT
REMS Metric Bending Former & Back Former 20 mm, 16 U, 18 U
For Curvo 50, REMS Curvo and REMS Sinus - form and pressure resistant, in high-strength, high-slide, glass-fibre reinforced polyamide. Optimum mating of bending formers and back formers ensures sliding appropriate to the material without cracks and wrinkles. Angle scale 0 to 180° provided on each bending former and mark on the back former ensure precise bending.
More Info
Rapid change of bending formers and back formers.
- Bending radius at the neutral axis of the bend – 75 mm
- Correction dimension for a 90° bend – 80 mm
- Correction dimension for a 45° bend – 36 mm
- Hard, half-hard, coated, soft copper tubes, also thin wall, EN 1057
- Coated, soft carbon steel pipes of the press fitting system EN 10305-3
- Electrical installation pipes EN 10255
- Multi layer composite tubes of press fitting systems
- Curvo 50 requires adaptor block 10-40, support 10-40 (part 582120) please call
Product Code: REM-581080
