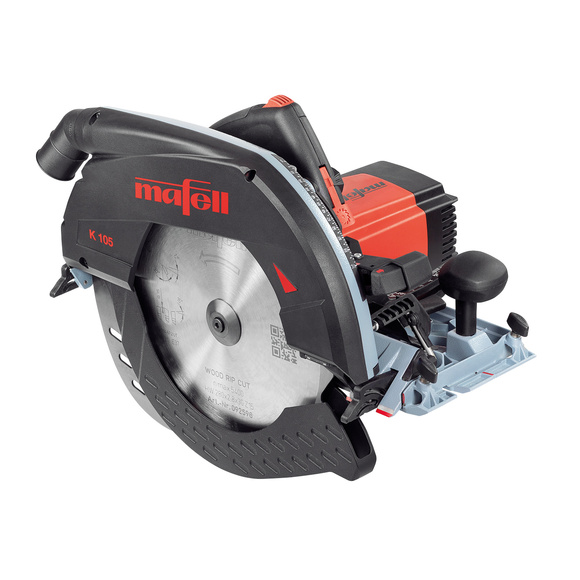

Mafell K105 Portable Circular Saw 230v

• Sheer power and high torque take on a whole new meaning with the high-output CUprex motor. It offers performance-optimised digital electronics and newly developed control technology. Its speed is continuously variable according to the nature of the material and application.
• It is no longer necessary to unscrew the riving knife – the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.

Applications:

• Cross-cutting and rip cuts
• Bevel / Compound Miter cuts up to 60 Degrees
• Birdsmouth Cuts
• Plunge Cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops, and internal finishing and renovation materials

Advantages:

Optimum chip ejection, especially when sawing insulating materials

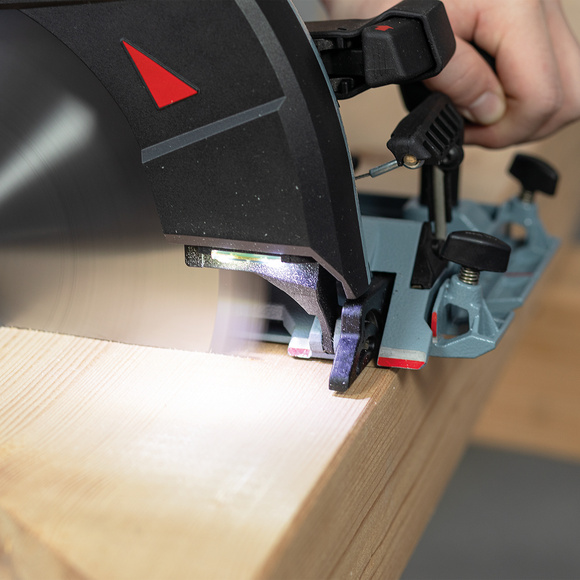

Bright LEDs illuminate a large working area

Sawing to mark. The pointer adjusts automatically to the set tilt angle

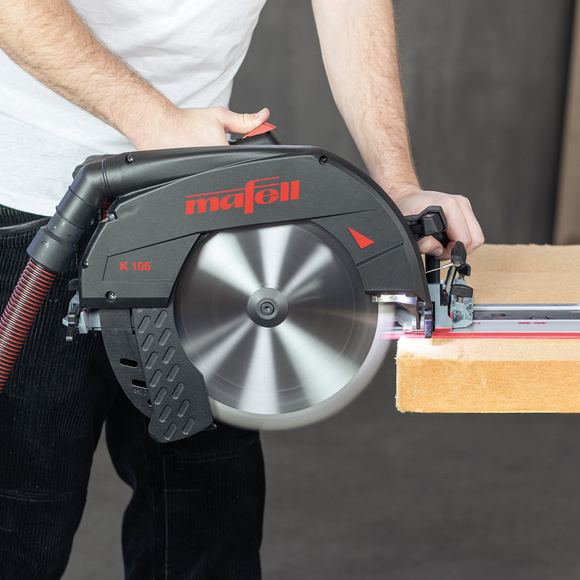

For an enhanced cutting depth of up to 110mm. Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104mm

The cutting depth is set and locking in a single, quick action

Thanks to the new tilting arrangement, reading the scale is easier than ever before

With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

Technical Data:

Cutting Depth: 0 - 110mm

Cutting Depth (a): 0 mm

Cutting Depth (b): 110mm

Cutting Depth at 45 Degrees: 0 - 77 mm

Cutting Depth at 60 Degrees: 2 - 55 mm

Cutting Depth On Rail: 0 - 104 mm

Tilt Range: 0 - 60 Degrees

Nominal No Of Strokes - No Load: 2250 - 4400 1/min

Extraction Connection Diameter: 35 mm

Nominal Power Input: 2300 w

Weight: 8.1 kg

Includes:

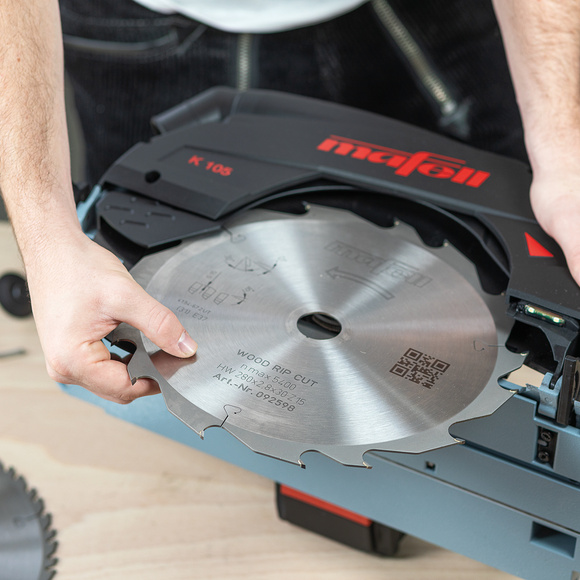

• 1 Saw blade KSB-WL 280 GT HW, 280 x 2,8 x 30mm (11 in.), T15-5, AT/FT, Wood Rip Cut; Ref. 092598
• 1 Parallel guide fence K 105-PA; Ref. 212867
• 1 Allen key 5 mm
• 1 Mains cable 10 m (32.8 ft)
