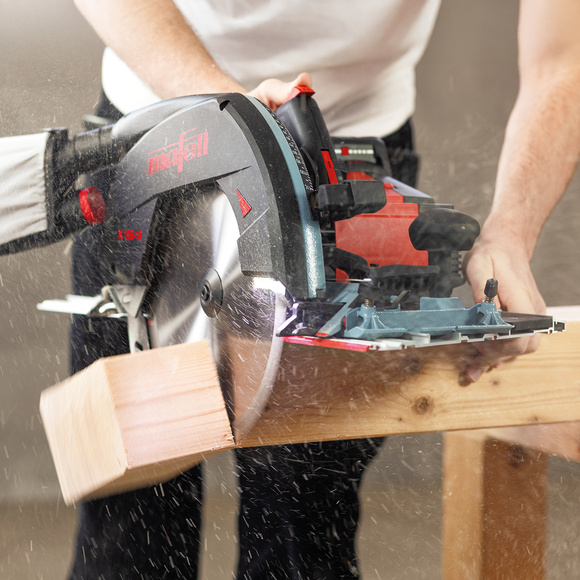

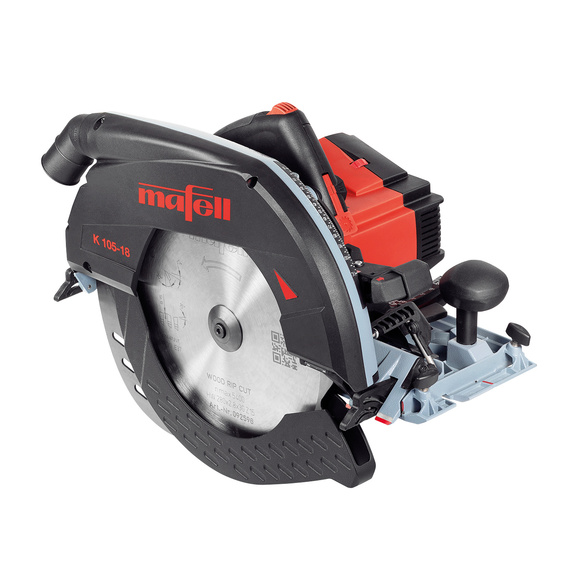

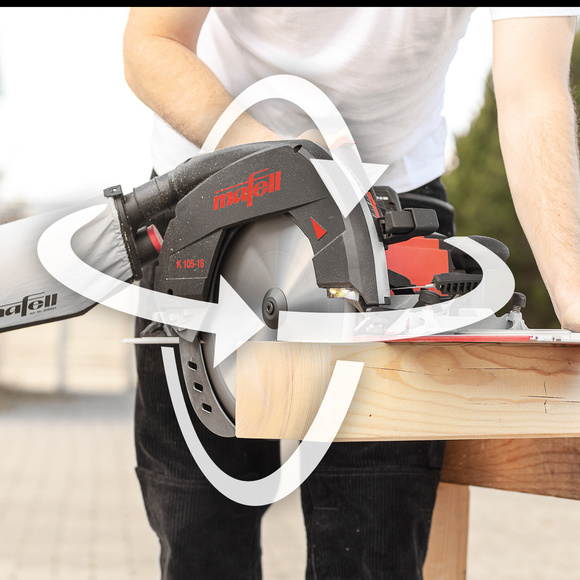

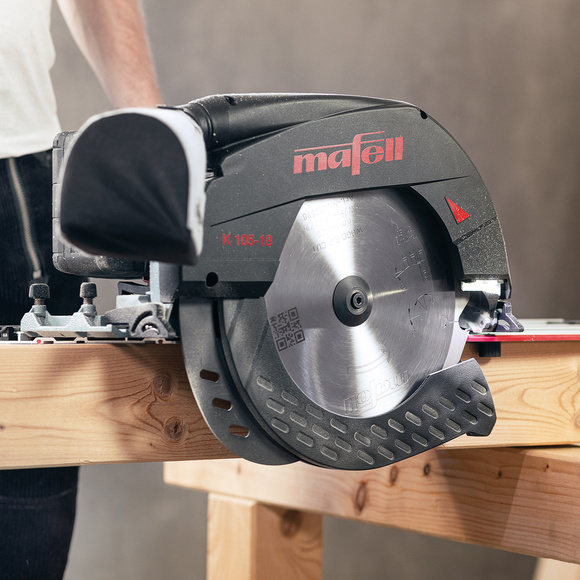

Mafell K105 18v Cordless Portable Circular Saw Pure

• With the Mafell ErgoBalanceConcept, our portable circular saws are optimised for all types of work. This is not only enables precise work, but also optimum ergonomic guidance. This effectively reduces fatigue.
• It is no longer necessary to unscrew the riving knife - the FLIPPKEIL offers you optimum user-friendliness and safety when plunge cutting.

Applications:

• Cross-cutting and rip cuts
• Bevel / Compound miter cuts up to 60 Degrees
• Birdsmouth cuts
• Plunge cuts
• Chamfers and grooves
• Compatible materials include solid wood, board materials, insulating materials, doors, worktops and internal finishing and renovation materials.

Advantages:

• Optimum chip ejection, especially when sawing insulating materials.
• Bright LEDs illuminate a large working area
• Sawing to mark. The pointer adjusts automatically to the set tilt angle
• For an enhanced cutting depth of up tp 110 mm. Even when used in conjunction with the guide rail, it achieves an exceptional depth of 104 mm.
• The cutting depth is set and locking in a single, quick action
• Thanks to the new tilting arrangement, reading the scale is easier than ever before.
• With the groove in the base plate, the portable circular saw can be used as a cross-cutting system. The guide device is required for this.

Technical Data:

• Cutting Depth: 0 - 100 mm
• Cutting Depth (a): 0 mm
• Cutting Depth (b): 110mm
• Cutting Depth at 45 Degrees: 0 - 77 mm
• Cutting Depth at 60 Degrees: 2 - 55mm
• Cutting Depth On Rail: 0 - 104 mm
• Tilt Range: 0 - 60 Degrees
• Nominal No Of Strokes - No Load: 2800 - 5200 1/min
• Extraction Connection Diameter: 35 mm
• Nominal Voltage: 2 x 18 V
• Weight: 9.3 kg

Includes:

• 1 Saw blade KSB-WL 280 GT HW, 280 x 2,8 x 30mm (11 in.), T15-5, AT/FT, Wood Rip Cut; Ref. 092598
• 1 Parallel guide fence K 105-PA; Ref. 212867
• 1 Allen key 5 mm
