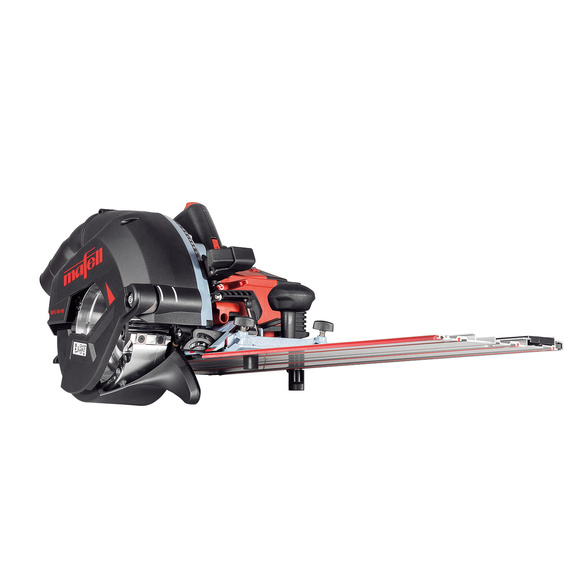

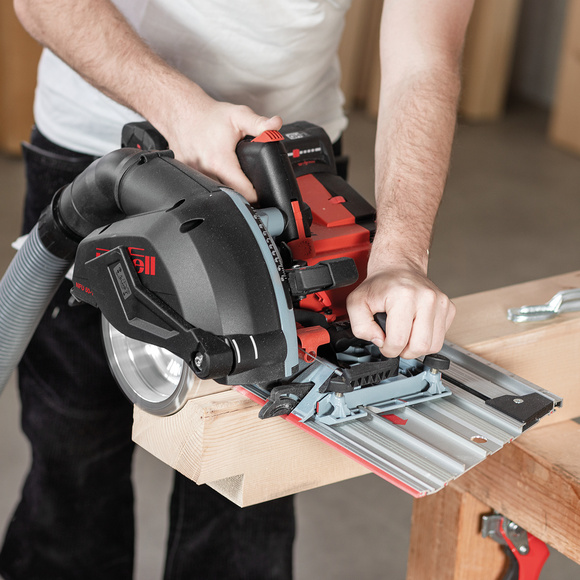

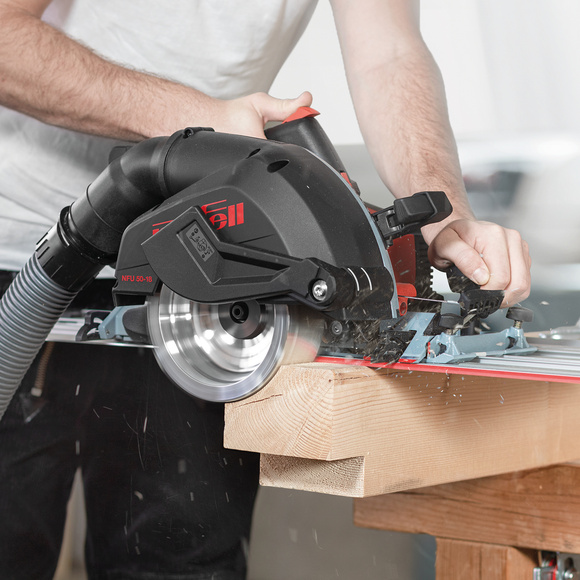

Mafell NFU50-18 Cordless Groove Cutting Machine PURE

The design of NFU 50 is characterised by the use of extremely rugged, high quality and precision-made parts, including the lightweight magnesium die-cast housing and impact-resistant, fibre glass-reinforced plastic components. It also features clever technical details to help you meet the rigors of the job.

Applications:

• Lengthwise and crosswise grooves
• Frieze blocks (with guide)
• Panels in half-timbered buildings, false floors
• Birdsmouth Joints up to 45º
• Tenons
• Compatible materials include solid wood and board materials

Advantages:

• The rotating 58 mm hose connector for large volumes of dust can be positioned by means of a locking function.
• The 2-in-1 functionality allows the cutting depth to be set quickly and easily
• The brake on the groove cutting machines stops the motor within 3 seconds for optimum safety
• The NFU can be removed from the cross-cut track at the single press of a button, allowing its use either freehand or on a guide rail.

Technical Data:

• Cutting depth at 0º with guide track:0 - 44 mm
• Cutting depth at 0º without guide track: 0 - 50 mm
• Tilt Range:0 - 45º
• Nominal no of strokes - No Load: 4700 - 7100 1/min
• Weight (including battery): 10.3 kg
• Dimensions (W x L x H) with guide: 370 x 810 x 280 mm
• Cutting Length with guide: 370 mm
• Extraction Connection Diameter: 49 mm

Includes:

• 1 x Cutter Head: 163 x 60 mm
• 1 x Position Indicator NFU-PA
• 1 x Parallel Guide Fence
• 1 x Side Fence SA 625; Ref. No. 207183
• 1 x Guide Track L, Max Cutting Length 370 mm
• 1 x Allen Key SW6
• 1 x Allen Key Torx T 15
• 1 x Box
