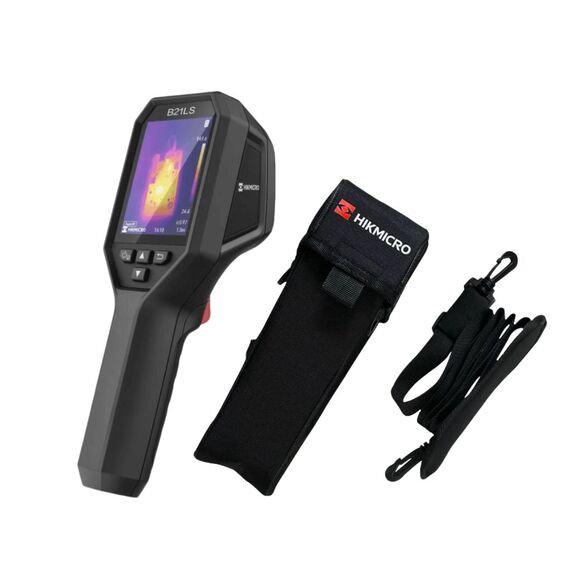

Hikmicro B21LS Thermal Infrared Camera c/w Pouch

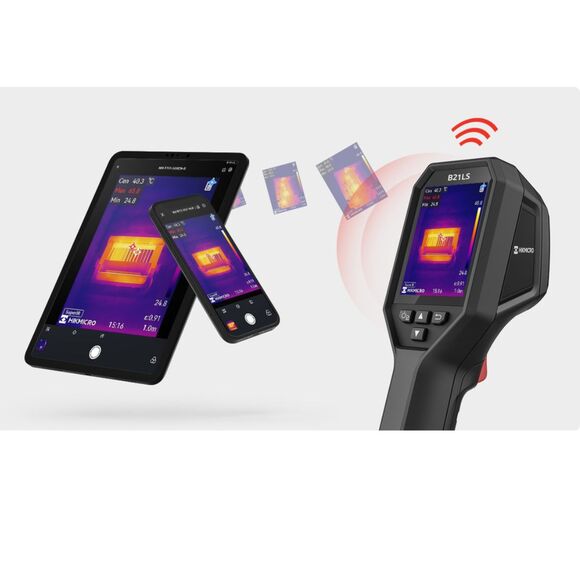

Connect to mobile devices via built-in Wi-Fi and the HIKMICRO Viewer App to quickly share your images.

Using a clip-on macro lens, the B21LS cameras can see details as small as 500 microns and allow you to take accurate temperature readings on small objects, such as components on printed circuit boards or assemblies.

Built-in speaker and flash light give the operator audio and visual alerts to high temperatures.

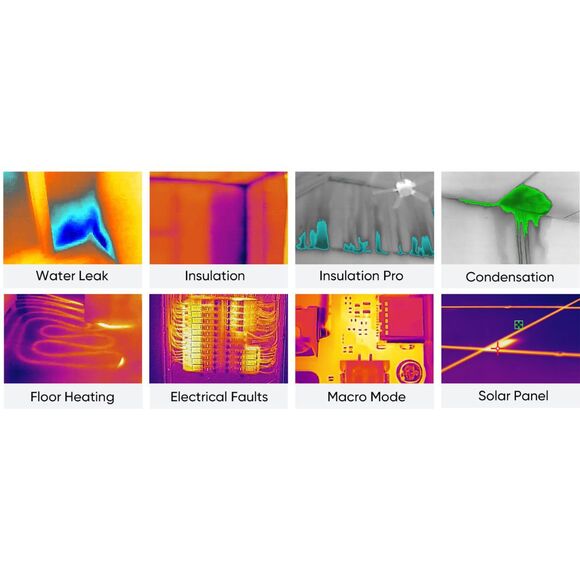

Whether in electrical scenarios, residential inspections, or equipment maintenance, the thermal imaging camera B21LS provides reliable performance. Its 25 Hz delivers smooth video and measurements while panning across scenes or viewing moving targets.

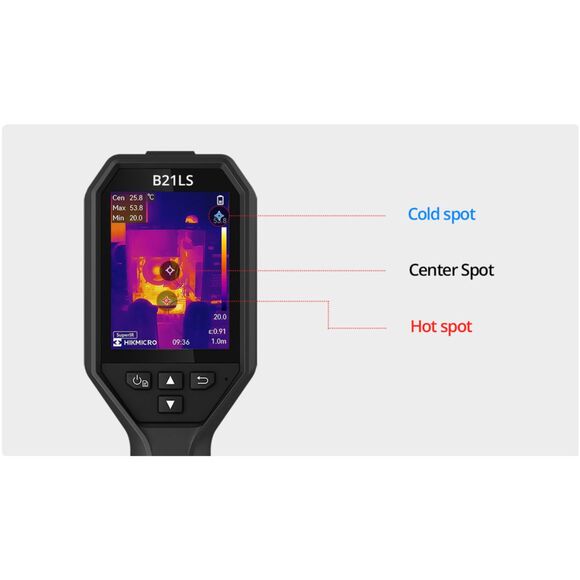

The Laser Pointer with B21LS helps show the position of the center point on actual object. Analyze, share images, and generate reports in real-time on-site.

General:

WI-FI:  802.11 b/g/n (2.4GHz)

USB Interface:  USB Type-C

Battery Type: Rechargeable Li-ion battery

Battery operating time: Approx 6 Hours

Battery charging time: Approx 3 hours fully charged

Protection Level: IP54

Drop test height: 2m (6.56ft)

Working temperature range (degrees): -10 to 50

Storage temperature range (degrees): -20 to 60

Relative humidity: < 95% non-condensing

Weight: Approx 380g

Dimensions: 221.7 x 73.5 x 123.8mm

Power Supply: USB-C (5V/2A)

Laser: Yes, Class II

Includes:

1 x USB-C Charging Cable

1 x HM-B01-POUCH
