Fein AKBC36 Magforce 18v Low Profile Mag Drill Kit
New
£1399.00
£1678.80 inc. VAT
Fein AKBC36 Magforce 18v Low Profile Mag Drill Kit
- Compact: With a height of only 169 mm, a length of 356 mm and a weight of 8.5 kg, it is ideal for confined working areas – even overhead and vertically.
- Productive: Up to 25% faster work progress and longer battery life. With an 18 V ProCORE 8.0 Ah battery, up to 35 holes can be drilled per battery charge (HM ULTRA 18 mm, S235 12 mm).
More Info
- Powerful: High-performance brushless motor with electronic speed control – ideal for core, spiral, thread and countersink drilling.
- Very safe: Permanent magnet with 8,000 N holding force, LED display for magnetic holding force and drilling pressure, and tilt sensor with automatic motor stop.
- Maintenance-free spindle feed ensures high concentricity.
- Fine adjustment of the permanent magnet for precise alignment at the drilling point.
- Can be used in thin sheet metal from 6 mm material thickness with reduced magnetic holding force.
- High gearbox positioning for optimum view of the drilling point.
- Drive shaft combines a 1/2-inch square drive and an 8 mm hex socket.
- 1/2 in adapter with SW19 hexagon for activating the magnet in tight or deep installation positions with open-end, box-end or socket wrenches.
- Compatible with Bosch Professional 18 V batteries since 2008 as well as with AMPShare and EXPERT batteries (8.0 Ah).
Specification:
- Battery voltage: 18 V
- Core drill holder: 3/4 in Weldon
- Battery compatibility: Li-Ionen / ProCORE Li-Ionen / EXPERT EXBA
- Battery interface: 18 V AMPShare
- Motor: brushless
- Speed, full load: 165 - 610 rpm
- Speed, no load: 165 - 660 rpm
- Carbide cutter max. dia.: 36 mm
- HSS core drill max. dia: 36 mm
- Core drill, drilling depth max: 35 mm
- Twist drill max. dia: 16 mm
- Tapping: M 12
- Countersinking max. dia: 32 mm
- Width across corners: 40 mm
- Height: 169 mm
- Stroke: 46 mm
- Magnetic holding power: 8,000 N
- Magnetic foot dimensions: 179 x 70 mm
- Weight without storage battery: 8.50 kg

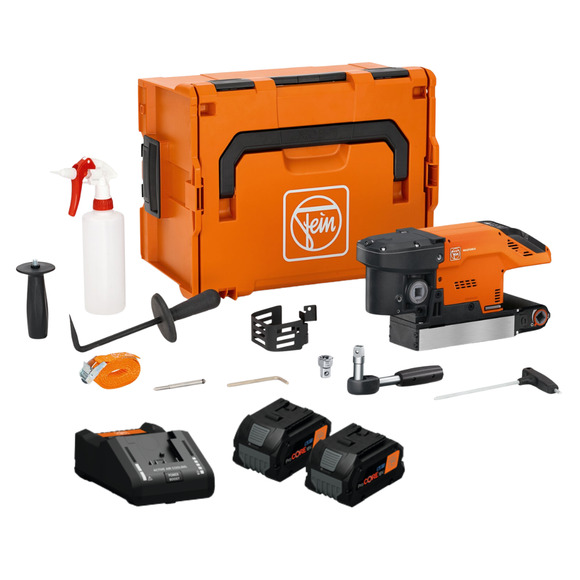

Supplied With:
- 1 x cordless magnetic core drill
- 1 x lashing strap
- 1 x additional handle
- 2 x ProCORE 18 V 8.0 Ah battery pack
- 1 x 1/2 ratchet
- 1 x chip hook
- 1 x 5 mm hexagon socket wrench
- 1 x plastic tool case (L-BOXX 238)
- 1 x adapter 1/2 in with SW19 hexagon
- 1 x 82 mm centring pin
- 1 x 5 mm hexagon socket wrench with T-handle
- 1 x coolant pump
- 1 Chip grid
- 1 x GAL18 V-160 AS rapid charger
Product Code: FEI-AKBC36-802C
